ประตูโรงรถสไตล์ยุโรป และ สไตล์อเมริกา
ประตูโรงรถ สไตล์ยุโรป และอเมริกา เหมาะกับบ้านทุก ๆ สไตล์ มีให้เลือกหลากสีสัน หลายลวดลาย ทั้งพื้นผิวลายไม้ธรรมชาติ, คลาสสิกแบบลูกฟัก, และงานสถาปัตยกรรมร่วมสมัย ติดตั้งได้ลงตัวทุกเหลี่ยมมุม

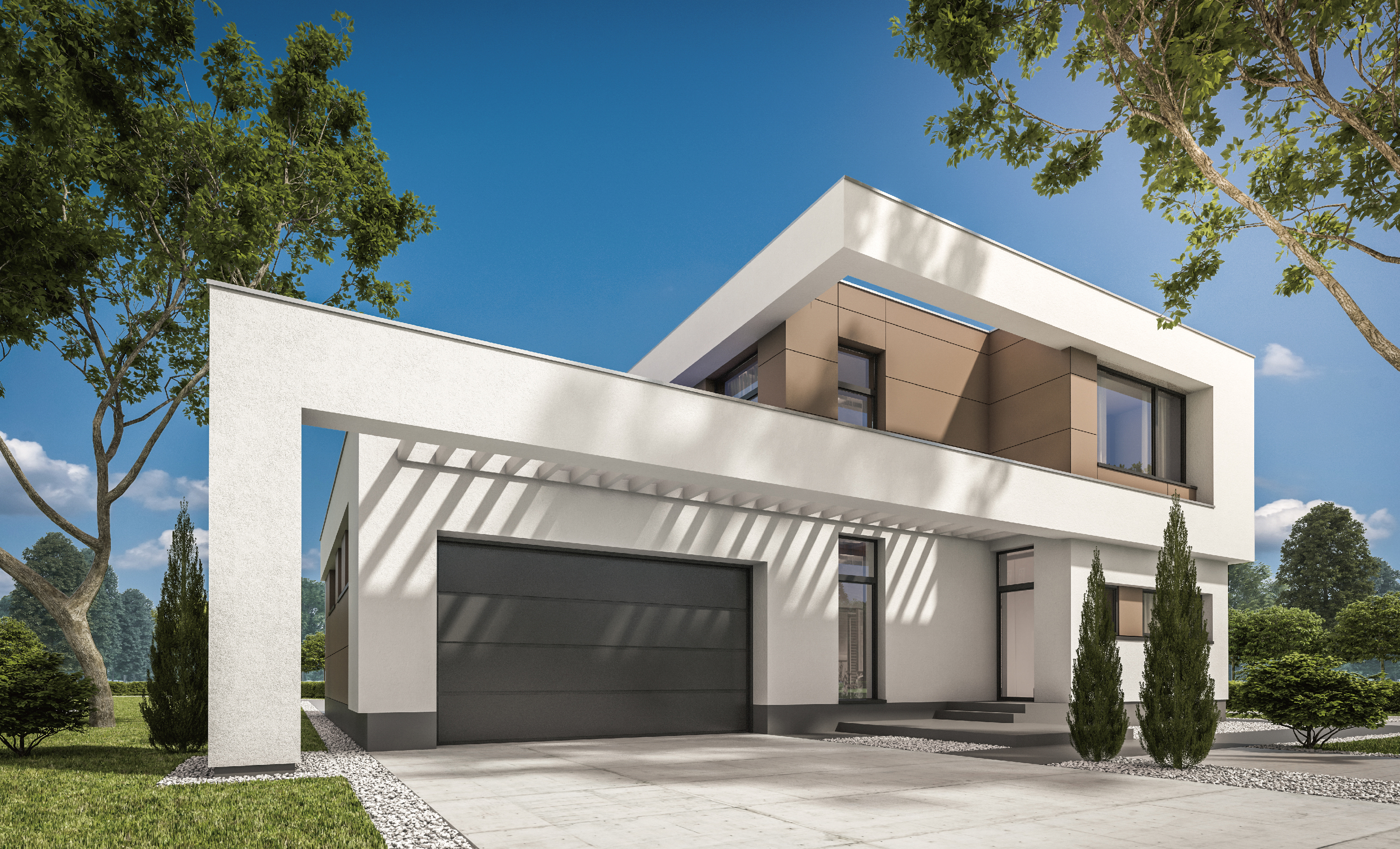

EUROPEAN TYPE – FINGER PROTECTION
![europeantype](/resource/product/garagedoors/european/europeantype.jpg)

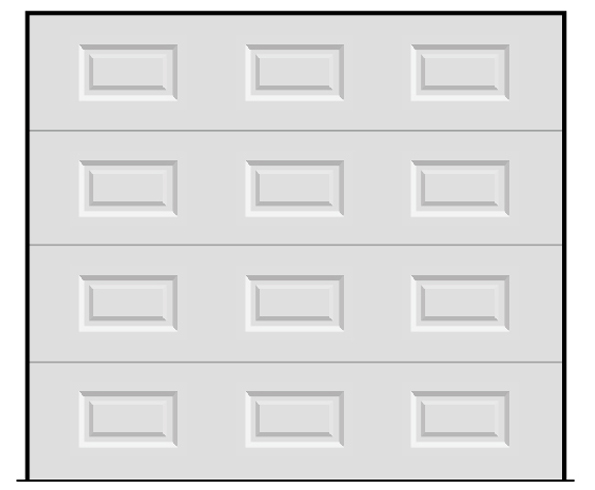

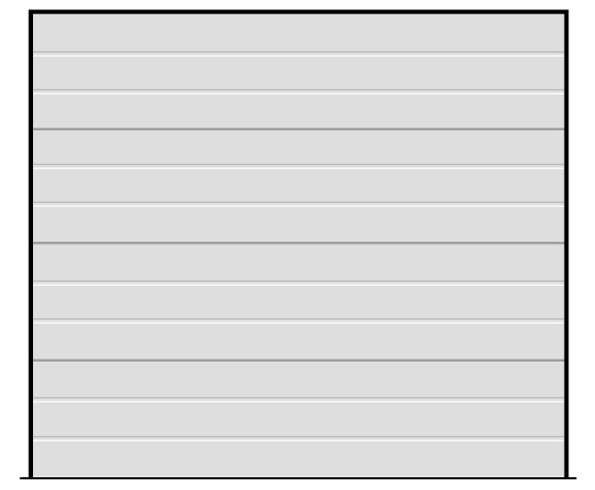

Panel Design
Surface Embossment
Available colors
Choose your construction
The construction and insulation type improves energy efficiency, durability and noise control of the door.
Finger – protectional type
- Panel width 430-60mm
- Panel thickness: 40mm
- Density: 45 -2kg/m3
- Material: Galvanized steel Epoxy paint
- Foaming: B3 grade PU foam
Reliable Operation
A modular system with a universally adjustable rail set.
Extension Spring
- Headroom min. 150mm (6”)
- Economic For little installation space for the garage door.
Torsion Spring – Single track
Headroom min.
- 350mm (14”) without L-frame min.
- 450mm (18”) without L-frame min.

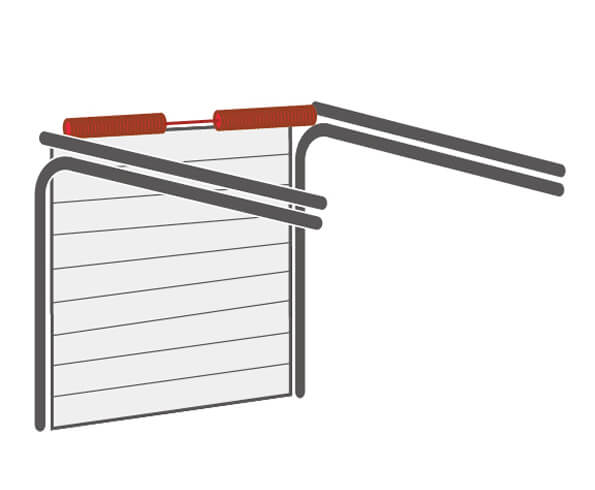

Torsion Spring – Double track
Headroom
- general required 250mm (10”)
- Can adjust if headroom only 200mm (8”)
Hardware Description
- 1. Assist angle
- 2. Top bracket
- 3. Roller
- 4. Motor
- 5. Torsion spring
- 6. Spring broken device
- 7. Tubular shaft
- 8. Cable drum
- 9. Upper track & horiztontal track
- 10. Adjustable hinge
- 11. Middle hinge
- 12. Emergency lock
- 13. Bottom bracket
- 14. Handle
- 15. Vertical track
- 16. Door panel
AMERICAN TYPE

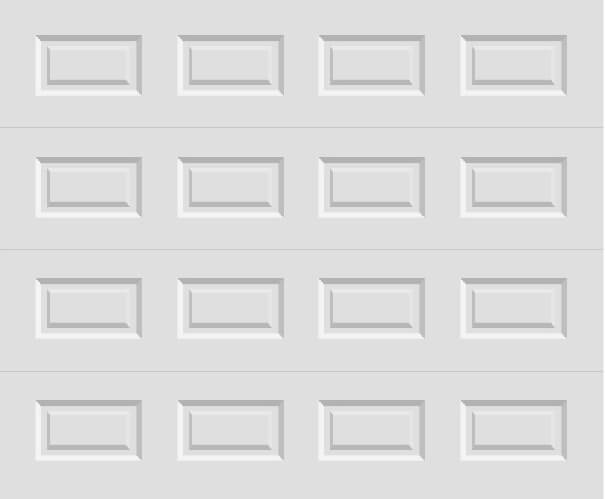

Choose your garage door size
Garage door sizes are generally categorized as single or double garage doors.
ขนาดประตูโรงจอดรถ บานเดี่ยวและบานคู่

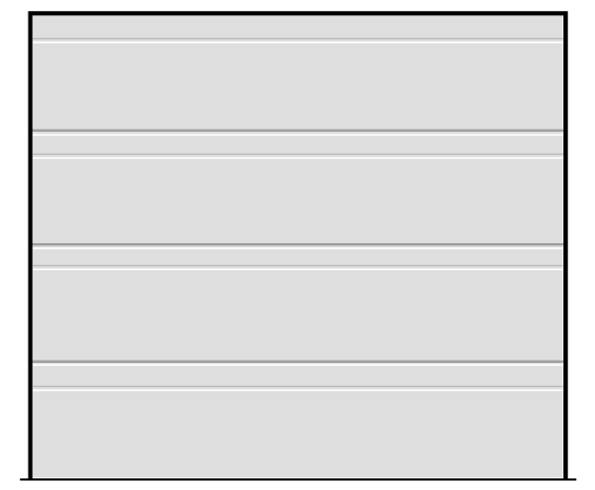

Panel Design
Surface Embossment
Choose your construction
The construction and insulation type improves energy efficiency, durability and noise control of the door.
BEST INSULATION-2”
- 2” insulation between two layers of steel
- Panel width: 1 3/4’, 1 3/5’
- Panel thickness: 2”
- Density: 45 -2kg/m3
- Material: Galvanized steel
- Foaming: B3 grade PU foam
BETTER INSULATION-1 3/8”
- 2” insulation between two layers of steel
- Panel width: 1 3/4’, 1 3/5’
- Panel thickness: 1 3/8”
- Density: 45 -2kg/m3
- Material: Galvanized steel
- Foaming: B3 grade PU foam thickness reinforcement steel sponge seal
Hardware Description
- 1. Assist angle
- 2. Horizontal track
- 3. Cable
- 4. Roller
- 5. Top bracket
- 6. Shaft coupler
- 7. Tubular shaft
- 8. Torsion spring
- 9. Middle bracket
- 10. Cable drum
- 11. Track connection
- 12. Flag bracket
- 13. 3# Hinge
- 14. 2# Hinge
- 15. Bolt lock
- 16. 1# Hinge
- 17. Jamb bracket
- 18. Bottom bracket
- 19. Handle
- 20. Vertical track

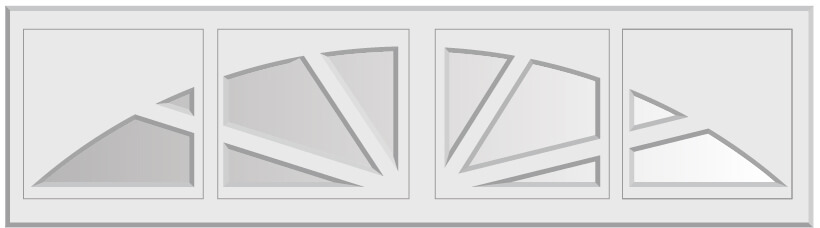

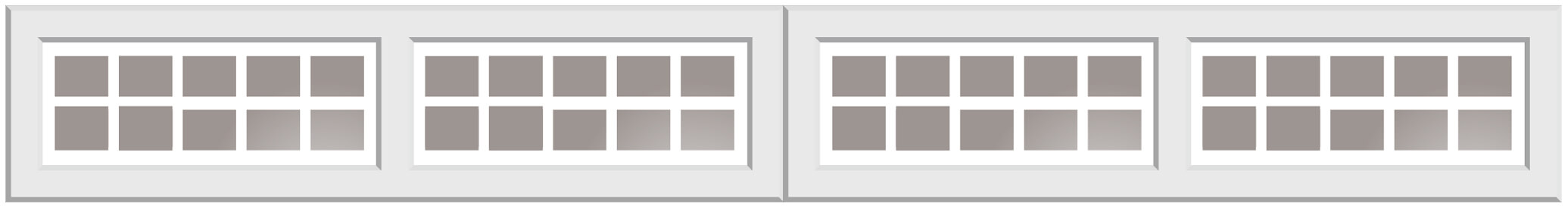

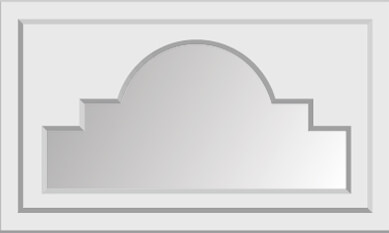

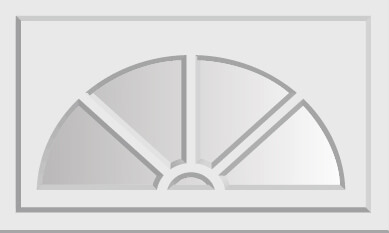

Windows Options
ADDITIONAL OPTION

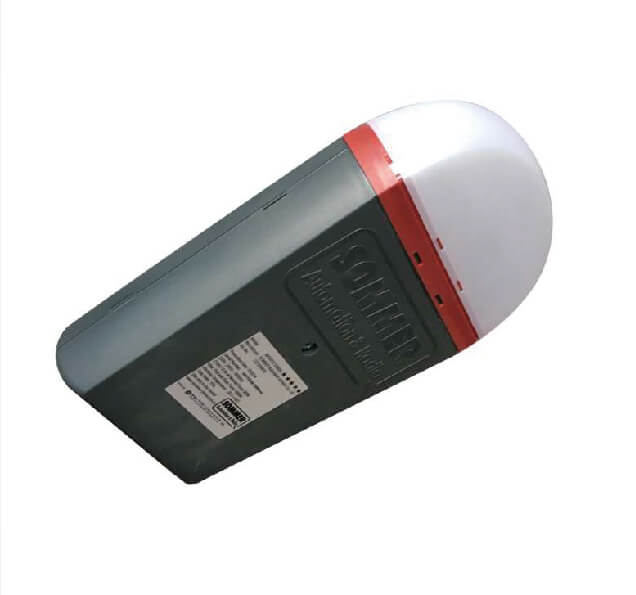

The garage door opener & optional control devices.
อุปกรณ์ควบคุมการทำงาน
Model | SA-600 | SA-800 | SA-1300 |
---|---|---|---|
Rated Voltage | 230v, 50/60Hz | 230v, 50/60Hz | 230v, 50/60Hz |
Output torque | 600N | 800N | 1300N |
Rated current | 0.7A | 0.8A | 0.9A |
Rated power | 150W | 180W | 210W |
Max. speed | 160mm/s | 150mm/s | 150mm/s |
Suit for door | 9m2 | 13m2 | 18m2 |
Working temperature range | -20 °C ~ 60 °C |
Model | XFC-600 | XFC-800 | XFC-1000 | XFC-1200 | XFC-1500 |
---|---|---|---|---|---|
Rated Voltage | 110 or 220x(110%) VAC, 50/60Hz | ||||
Output torque | 600N | 800N | 1000N | 1200N | 1500N |
DC mortor | 24V/7N | 24V/8N | 24V/8N | 24V/8N | 24V/8N |
Rated current | 2.5A | 3.3A | 4.1A | 5A | 6.25A |
Rated power | 80W | 80W | 100W | 120W | 150W |
Max. speed | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s |
Suit for door | 8-10m2 | 10-12m2 | 12-14m2 | 14-18m2 | 18-20m2 |
Working temperature range | -20 °C ~ 40 °C |
