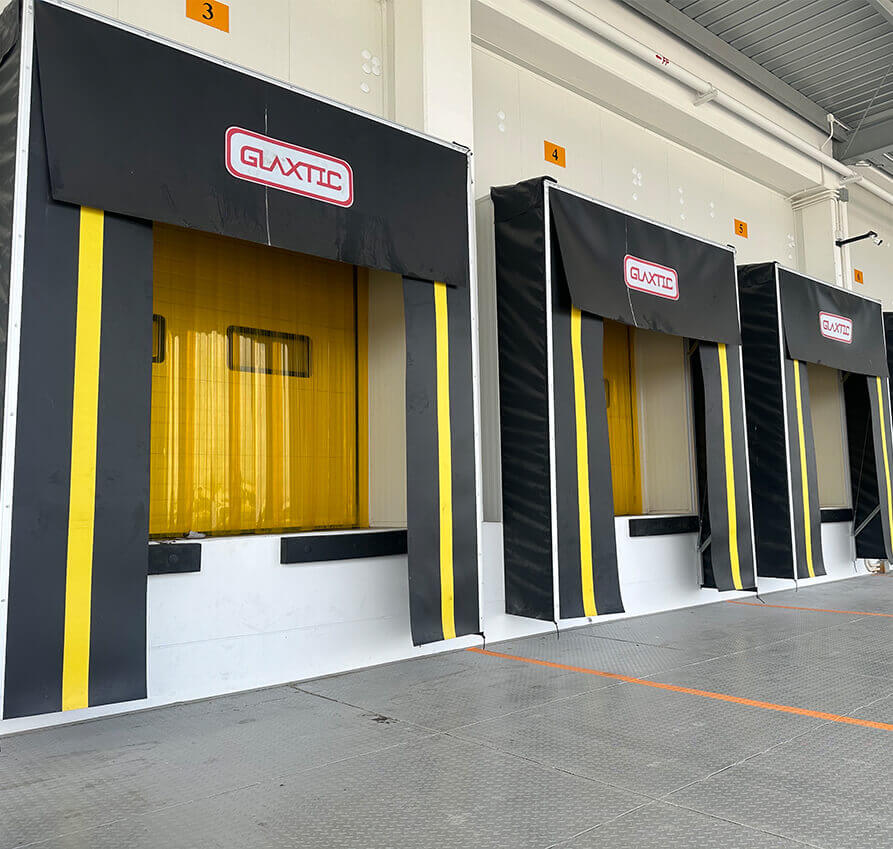

Retractable Dock Shelter (collapsible)
Feature
Main advantages:
- Folding aluminum construction;
- The dock shelter topsheet can be either single or double — to provide better contact with the vehicle body;
- Built-in springs allow the front folding frame to follow the vehicle body, preventing damage to the structure (in the case of incorrect vehicle parking);
- White reflective stripes located in front of the vertical sheets provide an accurate vehicle parking.
Specification
Dimensions / Features | |
---|---|
Width, mm | 3000 / 3200 / 3400 |
Height, mm | 3000 / 3200 / 3400 / 4400 |
Upper sheet | |
• Standard | Single |
• Upper request | Double |
Colour of profiles | White aluminum (RAL 9006) |
Performance | |
---|---|
Front Sheet - PVC | |
Lengthwise tear resistance | more than 550 n |
Widthwise tear resistance | more than 900 n |
Ultimate tensile strength | 250 n/mm |
Metal friction coefficient | 0,3 |
PVC friction coefficient | 0,4 |
Thickness | 3 mm |
Operating temperature | from -35 to 90 °С |
Side fabric - PVC | |
Tear resistance | 250 n |
Thickness | 0,5 mm |
Operating temperature | from -35 to 70 °С |
Aluminum frame | |
Rear frame profiles | 50×44 mm |
Front frame profiles | 45×44 mm |
Brace | 50x25x2,5 mm |
Front clamping bar | 34×4,8 mm |
Package | ||
---|---|---|
Standard | Option | |
Dock shelter depth | 600 mm | 900 mm |
Upper sheet | Single | Double |
Profile colour | White aluminum (RAL 9006) | Other upon request |
Seal | - | Small / Large corner cushion in bottom part |
Construct and size
- 1. Upper front sheet
- 2. Side front sheet
- 3. Brace
- 4. Spring
- 5. Integral stocking with water flow system
- 6. White reflective
- 7. Harness rubber
Dock Shelters of D.SH-RT series, consist of front and rear frames made of aluminum profiles which are connected to each other by braces. At the connection a cable is installed with a spring to provide the necessary elasticity of the structure. Front and upper side sheets are made of PVC and reinforced with two layers of polyester. The top sheet has special cuts for a tighter fit to the car body. Vertical front sheets have white reflective stripes, which ease the car parking. Side and top “sleeves” are made of a material which has a layer of synthetic reinforcement.
