Inflatable Dock Shelter

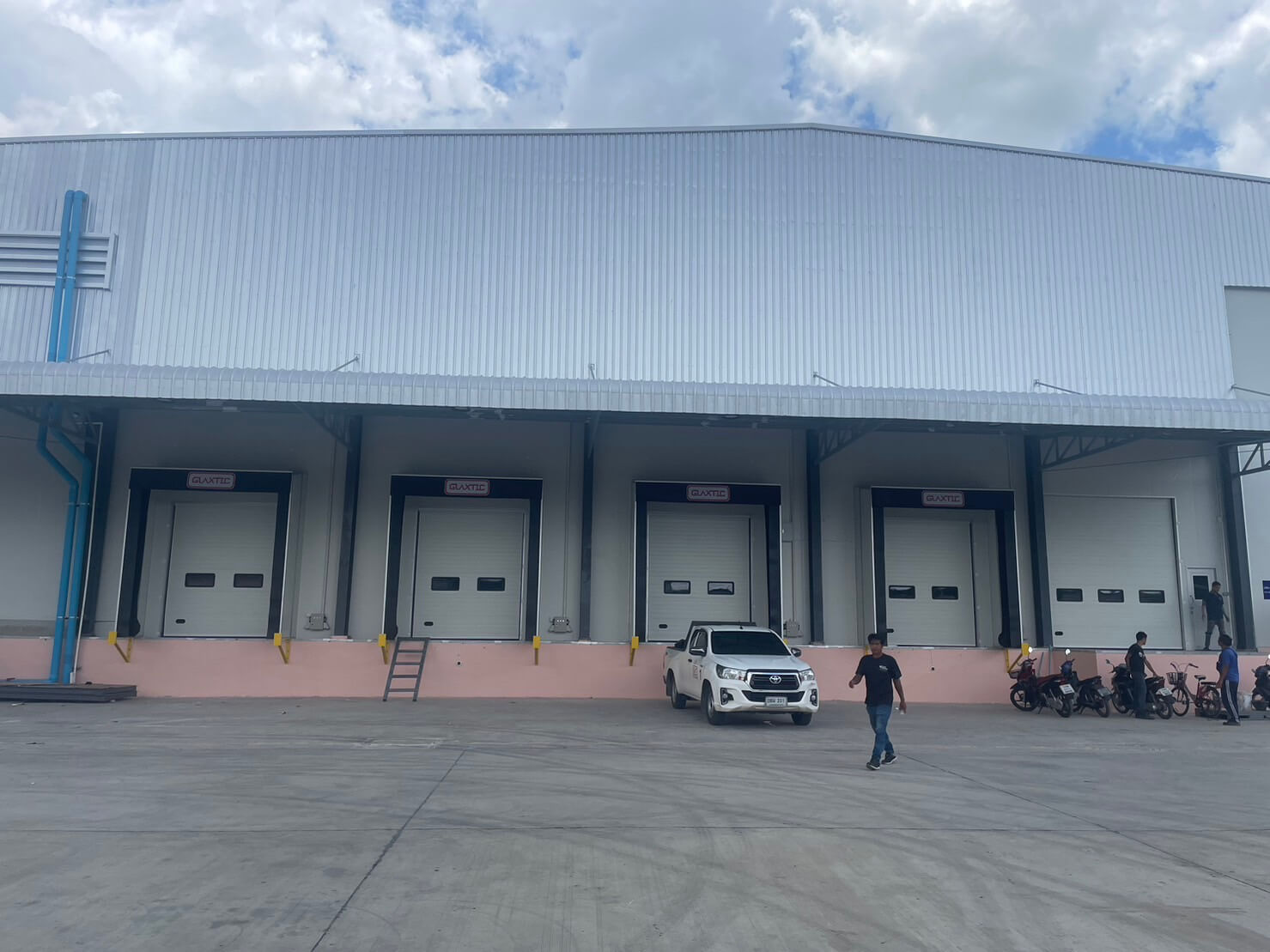

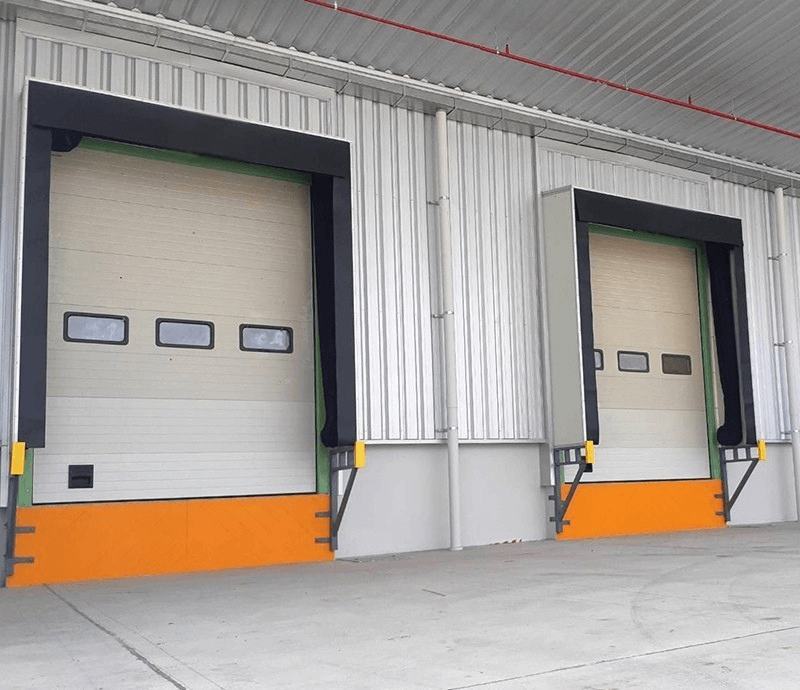

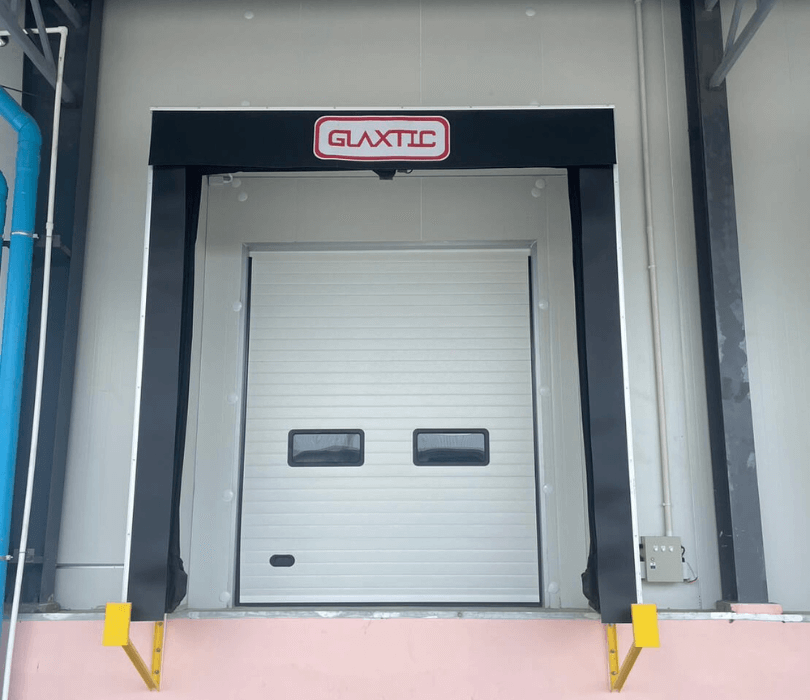

Inflatable Dock Shelter functions as follows: once the vehicle is docked, the air sacs on top and sides will inflate to heavily and totally seal the gaps between the vehicle and the loading shelter. When not in use, the air sacs deflate. This dock shelter is suitable for all types and sizes of vehicles and is widely used at loading areas in cargo warehouses and industrial plants with cold-storage rooms or freezer rooms requiring strict temperature control.
Feature
Main advantages:
- Wide Range of Application - With an adjustable width and height of up to 1,000 mm, the inflatable dock seal is compatible with a wide range of truck chassis heights and sizes.
- Easy Operation - Once the vehicle is properly positioned, a simple switch activates the blower, inflating the airbag to create a tight seal on all three sides of the trailer. The soft, flexible surface prevents any damage to the vehicle. The blower operates continuously during use to maintain air pressure and provide effective wind resistance. After the process, the system automatically deflates and retracts using a built-in counterweight.
- Reliable Performance in All Conditions - Equipped with a high-capacity 220V blower designed for outdoor use, the system performs reliably in extreme temperatures ranging from -30°C to 60°C.
- Durable, Low-Maintenance Design- Crafted from high-quality neoprene rubber, the inflatable seal offers excellent wear resistance and flexibility. The black surface material is designed to endure over 30,000 operation cycles with minimal maintenance
- Enhanced Safety with Signal Lights - A built-in signal light system provides clear visual guidance, helping truck and forklift drivers operate safely and efficiently throughout the docking process.
Specification
| Dimensions / Features | |
|---|---|
| Width, mm | 2000 / 2300 / 2500 |
| Height, mm | 2300 / 2500 / 2700 / 3000 |
| Upper cushion extension, mm | 900 (1200) |
| Side cushion extension, mm | 600 |
| Upper decorative curtain, mm | 500 |
| Side decorative curtain, mm | 250 |
| Profile colour | White aluminum (RAL 9006) |
| Wall panel colour | Signal white (RAL 9003) |
| Control | Switch /dock leveler control unit |
| Performance | |
|---|---|
| Control system | |
| Supply voltage 1 or 3 phases | 220/380 V, 50 Hz |
| Motor | 0, 18-0,35 kW |
| Control unit | External |
| Protection class of control unit | IP54 |
| Average time of cushions inflation | 40 s |
| Operating temperature | From-35 to 70 °С |
| Inflatable cushions | 0,5 mm |
| Material | Cordura 1000 |
| Thickness | 0.5 mm |
| Ultimate tensile strength | More than 290 N/mm |
| Sandwich pane | |
| Thickness | 40 mm |
| Colour on inside/outside | Signal white (RAL 9003) |
| Package | ||
|---|---|---|
| Standard | Option | |
| Dock shelter depth | 800 mm | Other upon request |
| Upper cushion extension | 900 mm | 1200 mm |
| Panel colour | Signal white (RAL 9003) | Other upon request |
| Profile colour | White aluminum (RAL 9006) | Other upon request |
| Colour of decorative curtains and inflatable cushions | Black | |
| Seal | PVC-seal along perimeter | For dock levelers > 3000 mm |
| Operation | Switch | Dock leveler control unit |
Construct and size
- 1. Dock shelter body (two walls and roof)
- 2. Fan
- 3. Counter
- 4. Top cushion
- 5. Side airbag
- 6. Shaft of the counterweight
- 7. Blocks of counterweight
- 8. Curtain decorative

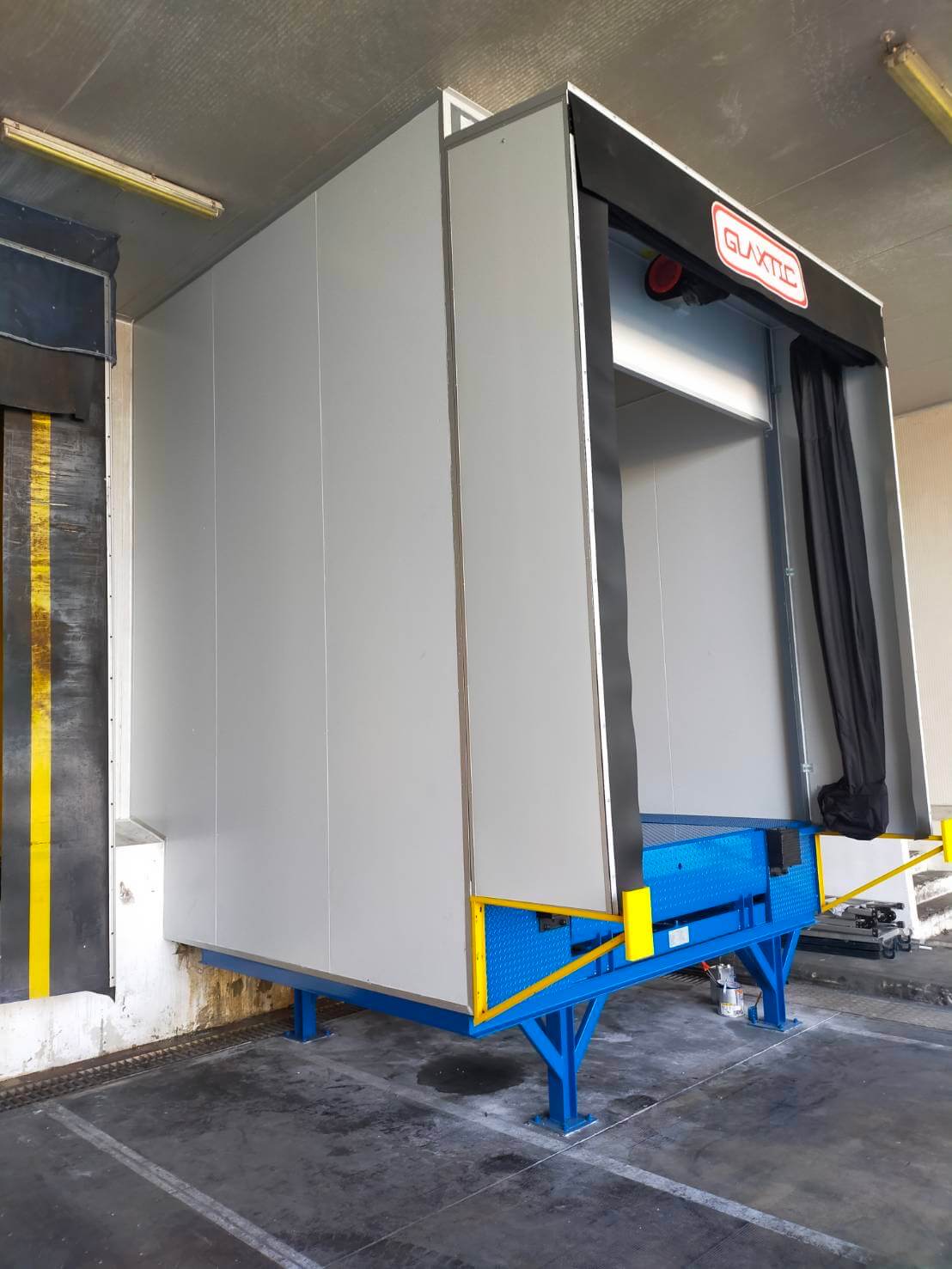

The GLAXTIC® Inflatable Dock Shelter is composed of a rigid structure, inflatable cushions, a high-performance blower, and protective curtains. The main body is constructed from 40 mm-thick insulated sandwich panels for both the walls and roof, offering excellent thermal efficiency and durability.
The inflatable cushions are pre-installed within the frame, while a separate top panel houses the winding ropes and integrated counterweight system for automatic retraction.
Operation is simple and user-friendly—activated via a control switch, the blower inflates the cushions to create a tight seal around the truck, ensuring optimal energy savings and protection during loading and unloading.
