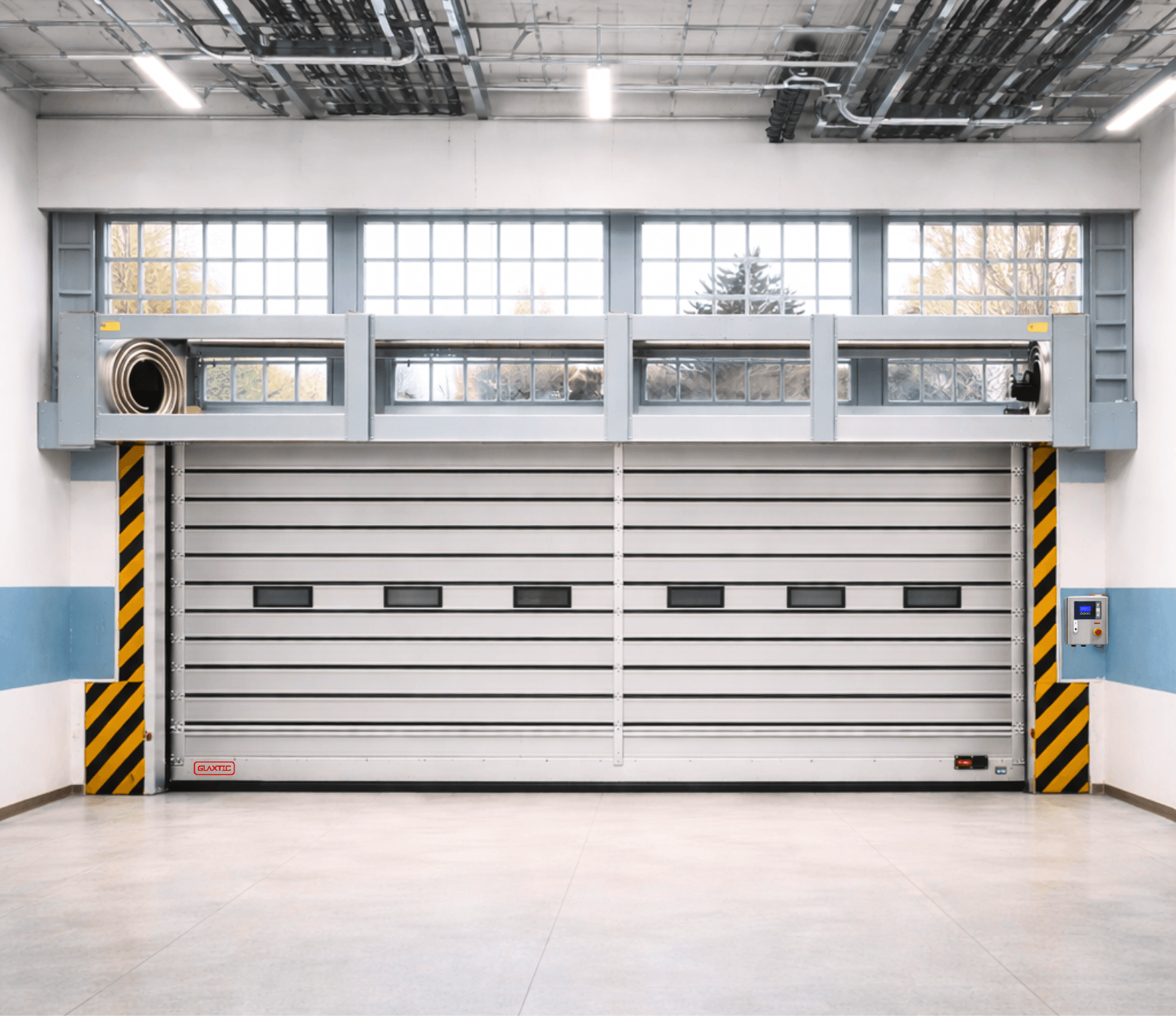

GLAXTIC® Spiral

GLAXTIC® Spiral, crafted from robust aluminium, offers unparalleled strength and safety. Its durable frame ensures resilience against wind forces, guaranteeing longevity in diverse environments. These doors double as effective insulation barriers for temperature-controlled facilities, making them ideal for industrial plants, underground parking facilities, and cargo warehouses alike.

Features

1. Infrared function: External infrared equipment can be connected to control the rapid opening of the door and prevent the door from falling to hit people;
2. Radar equipment: for sensing the approaching, control the door to open;
3. Geomagnetic function: Used for vehicles induction,in common is the induction forklift, the door will automatically open when the forklift approaching the door
4. Manual emergency stop: for special cases, make the door stop at a certain position;
5. Power off regularly;

Specification

Description: Aluminum Spiral High Speed Door
Maximum Size: 8000mm x 6500mm
Opening Speed: Up to 2.5m/s, adjustable
Temperature Resistance: -25°C to 65°C
Wind Resistance: Class 12 (Beaufort Scale)
Door Panels: Aluminum with insulation, 40mm/50mm thickness
Portal frame structure: 2mm thick galvanized steel
High Performance against wind pressure:positive or negative <65kg/m2
Control Box: Safety class—IP55; Variable speed drive
Vision Window Available: Extruded aluminum with PC sheet
Emergency Operation Available: with Emergency Lock

Multiple opening methods

Motion sensor: When the radar detects a person or a forklift passing by, the high speed rolling shutter opens quickly. When people enter, it will automatically fall.

Vehicle decetor: The geomagnetic sensor will recognize the forklift and the door will open automatically

Bluetooth: AGV workshops are usually equipped with Bluetooth. When the AGV trolley passes by, the door will automatically open.

Remote control: Our high-speed doors can be easily opened and closed by simply pressing the remote control.

Professional core technology

SEPPES high speed spiral door is a new type of metal industrial door that integrates the functions of heat preservation, energy saving, sealing, high efficiency, wind resistance and environmental protection.

The spiral door is suitable for fast passage of indoor and outdoor logistics and production. Compared with ordinary metal rolling shutter doors and sliding doors, it can save about 87% of energy consumption for enterprises.
