GLAXTIC® Fold UpGLAXTIC® Fold UpGLAXTIC® Fold UpGLAXTIC® Fold UpGLAXTIC® Fold Up

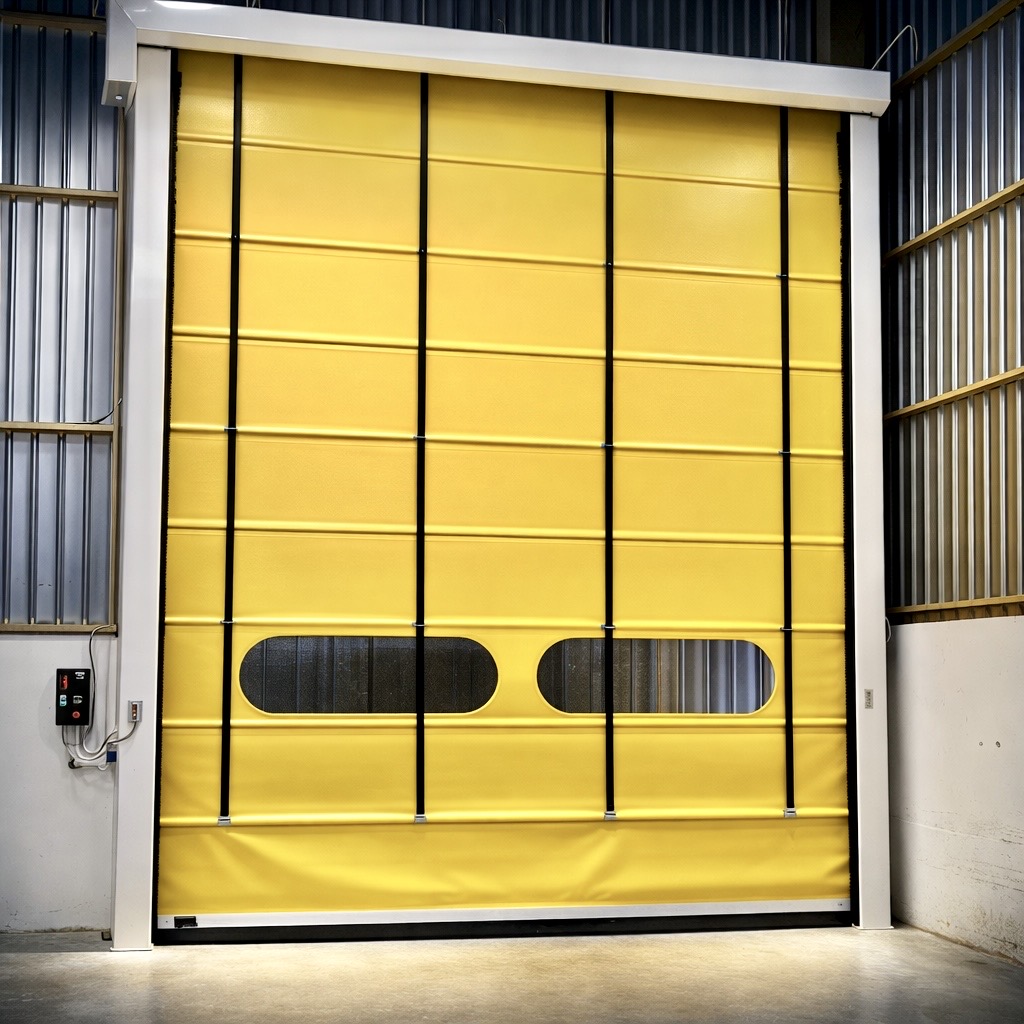

GLAXTIC® Fold Up

GLAXTIC® Fold Up

Download Catalogue

GLAXTIC® Fold Up is a high speed stacking door for indoor and outdoor openings. Reinforced horizontal bars strengthen the curtain for demanding factory, warehouse and logistics environments.

Request a Quote

ADJUSTABLE OPENINGUp to 1.5 m/s
MAXIMUM OPENING8,000 × 8,000 mm
DRIVE & CONTROL PROTECTIONIP55

BUILT FOR THE WORKING DAY

Big openings.Reliable access.

Keep traffic flowing

Adjustable opening and closing speeds support frequent movement of people and goods.

Built for exposed openings

Reinforced horizontal bars and a robust frame support wind resistance up to 100 km/h.

Protection in motion

Facing safety photocells and a wireless safety edge detect obstructions during closing.

INTERACTIVE PRODUCT EXPLORER

See how it folds.

Open the door, explore its components and try the photocell safety demonstration.

MODEL SHOWN6,000 × 5,000 mmStainless steel 304RAL 1018
GLAXTIC Fold Up 3D model
Open 3D model Opening 1.5 m/s · Closing 0.5 m/s

STANDARD SAFETY FEATURES

Two ways to detect.
One priority: safety.

Detection across the opening and along the bottom of the curtain.

Safety photocells01 / NON-CONTACT DETECTION

Safety photocells

Facing sensors monitor the opening. If an object interrupts the beam while the door is closing, the door reverses and opens fully.

Try the safety demo ↗
Wireless safety edge02 / CONTACT DETECTION

Wireless safety edge

The sensitive bottom edge detects contact with an obstruction, triggering the door to stop and reverse.

A hand crank is included for manual operation.

TECHNICAL DETAILS

Specified for
your space.

Choose the frame, curtain and activation method to suit your opening and daily traffic.

Technical specifications
Application Indoor and outdoor industrial, storage and commercial openings
Maximum opening 8,000 mm wide × 8,000 mm high
Opening speed 1.5 m/s · adjustable
Closing speed 0.5 m/s · adjustable
Frame Galvanized steel; optional stainless steel 304 legs, 1.5 mm thick
Curtain SIOEN PVC-coated high-tenacity polyester · 0.8 / 1.2 mm
Curtain properties Anti-static and mildew resistant
Wind resistance 100 km/h
Drive Servo motor with precision control · 1.5–2.2 kW · IP55
Power supply 220 V single phase up to 25 m²; 400 V three phase over 25 m²
Control box Servo PLC · powder-coated steel or stainless steel 304 · IP55
Standard safety Wireless safety edge · facing photocells in protective brackets · hand crank
Operating life 500,000 cycles
Working temperature 10°C to 50°C
Optional insulation Triple-insulated curtain
Curtain specifications · B6701

SIOEN Sioline B6701 is an anti-static, PVC-coated polyester fabric for industrial doors.

Anti-static

Helps limit static build-up on the curtain.

Reinforced fabric

Polyester reinforcement provides strength against pulling and tearing.

Colour retention

High light-fastness rating helps the coloured fabric resist fading.

Sioline B6701 curtain fabric specifications
Property Value Test method
Fabric 100% polyester · 1,100 dtex DIN ISO 2060
Coating PVC —
Total weight 1,700 g/m² ISO 2286-2
Finish Glossy on both sides —
Breaking strength 4,000 / 4,000 N per 5 cm ISO 1421-1
Tear strength 600 / 600 N DIN 53363
Coating adhesion 100 N per 5 cm ISO 2411
Temperature resistance −30°C to 70°C · fabric only EN 1876-1
Light fastness 7–8 · excludes white and transparent fabrics ISO 105 B02
Burning rate Below 100 mm/min ISO 3795

Paired strength values are warp / weft. These figures apply to the B6701 fabric, not the clear PVC panel or complete door. Door operating temperature: 10°C to 50°C.

Sioline B6701 technical data sheet

CONFIGURATION OPTIONS

A fit for your workflow.

Curtain colours

RAL 1018
RAL 3028
RAL 5010
RAL 7038
RAL 9005

Other colours on request. Availability and actual colour depend on supplier stock.

Clear PVC vision panel

Continuous clear PVC panel across the curtain

A continuous clear PVC panel across the curtain lets people see activity on the other side before passing through.

Panel height and position can be configured to suit the opening.

Suitable for

Food industry

Production and goods access

Warehouses

Large warehouse openings

Logistics

Busy goods movement

Factories

Indoor and outdoor access

Retail

Stockrooms and delivery areas

INDOOR & OUTDOOR APPLICATIONS

Built for large openings.
Ready for frequent use.

From production areas and warehouses to loading bays, GLAXTIC® Fold Up supports frequent traffic through large indoor and outdoor openings.

Stacking doors installed along a factory exterior

OPENING DEVICES

Open it your way.

Choose manual or automatic activation to match how people and vehicles use the door.

Push button

Push button

Press to operate.

Pull rope

Pull rope

Pull to activate.

Remote control

Remote control

Open from a distance.

Induction loop

Induction loop

Detect vehicles in the loop.

Photocells

Photocells

Detect a beam interruption.

Radar

Radar

Detect approaching traffic.

Opening device demonstration model

Opening devices for GLAXTIC® high-speed doors

Explore how each device sends an opening signal. GLAXTIC® Roll Up is shown as the example door in this animation.

View opening devices

Illustrative devices and detection zones. Activation photocells are separate from the door’s safety photocells. Selection and positioning depend on the installation.

IN OPERATION

Built to move.
Made to work.

Watch the GLAXTIC® Fold Up in action.

LET’S FIND THE RIGHT DOOR

Tell us about
your opening.

Share your opening size, installation area and operating requirements with our team.

Request a quotationLINEOfficial · @goldvest 66 (0) 2738-4939sale@goldvestthai.com
