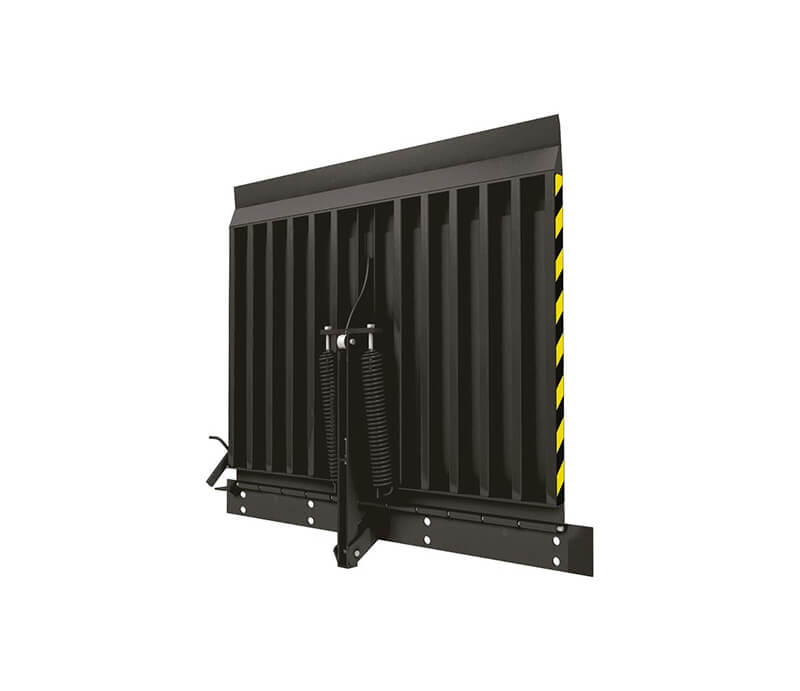

Mechanical Manual Bridge
Mechanical Manual Bridges is used to connect the loading vehicles with the floor of the cargo warehouses for loading and unloading. The bridge is a slope that can adjust for height according to each loading vehicle, allowing for fast, safe and efficient loading.
Feature
Mechanical Manual Bridges
SLIDING
- Length (mm) 1000 / 1500
- Width (mm) 1200 / 1500 / 2000
STATIONARY
- Length (mm) 1000 / 1500
- Width (mm) 1200 / 1500 / 2000
Specification
| Bridge type | Stationary | Sliding |
|---|---|---|
| Height, mm | 210 | 210 |
| Working range upwards, mm | 120–180 | 120–180 |
| Working range down, mm | 120-180 | 120-180 |
| Colour, RAL | 9005 (Black) | 9005 (Black) |
| Thickness of upper platform layer, mm | 5 | 5 |
| Coating thickness, µ | 60-90 | 60-90 |
| Payload, kN | 40 | 40 |
| Maximum point load, N/mm² | 40 | 40 |
| Cleaning class before painting | Sa 2 | Sa 2 |
| Operating temperature range, °C | -35 ... 50 | -35 ... 50 |
| Weight, kg | 150 | 150 |
| Mounting kit | No | No |
| Yellow-black warning stripes | Yes | Yes |
