STANDARD GRADES
Clear PVC
Everyday separation. Clear visibility.
A versatile transparent material for busy doorways and partitions. It helps separate temperature zones while keeping the view through the opening clear. Standard Clear PVC is easy to clean, 100% recyclable and non-phthalate.
- High transparency
- Easy to clean
- 100% recyclable
- Non-phthalate
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICGeneral-purpose clarity
TYPICAL APPLICATIONS
WarehousesProduction areasInternal doorways
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Recyclability |
100% recyclable |
| Formulation |
Non-phthalate |
| Light transmission |
85% · ASTM D 1003 |
| Hardness |
80 Shore A · EN ISO 868 |
| Material options |

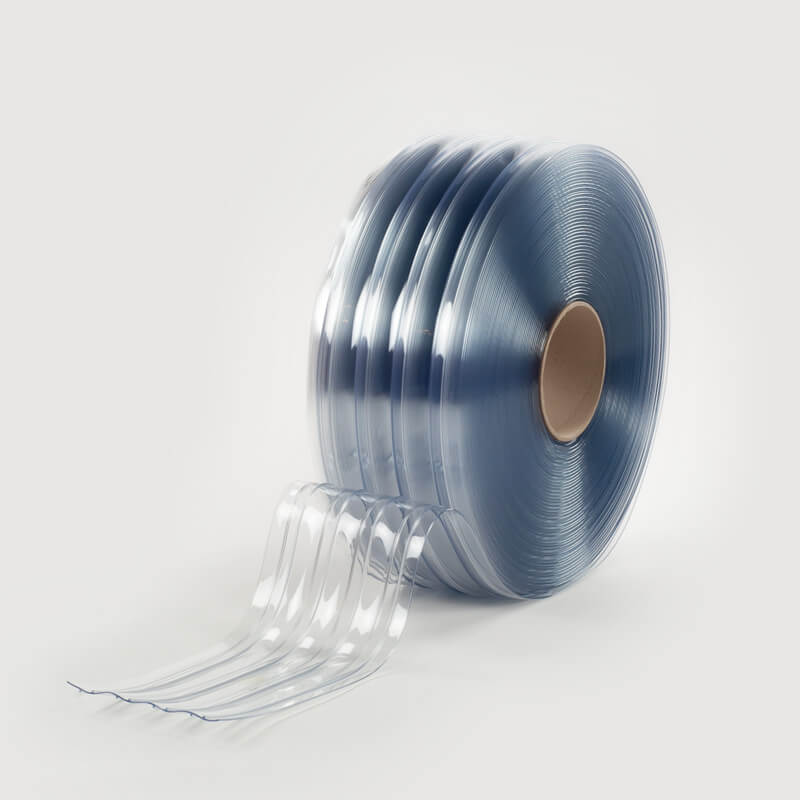

Smooth or ribbed; confirm selected format |
Typical material values. Performance of an installed curtain depends on strip thickness, overlap and operating conditions.
View manufacturer specifications
STANDARD GRADES
Transparent Coloured PVC
Colour with visibility.
Translucent coloured strips help identify zones and mark doorway edges while allowing light through. Orange and other colours offer an alternative to standard clear material.
- Colour-coded separation
- Light-transmitting finish
- For partitions and edge markers
OPERATING TEMPERATUREDepends on formulation
KEY CHARACTERISTICVisible zone identification
TYPICAL APPLICATIONS
Factory zoningDoorway markersRetail spaces
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
Depends on formulation |
| Colours |
Red, blue, green, orange and other options |
| Published temperature limits |
Minimum −15°C to −25°C; maximum 30°C to 50°C, by formulation |
| Selection |
Confirm colour and matching temperature rating |
Colour alone does not establish insect-control or welding-screen performance. Select a dedicated technical grade for those requirements.
View manufacturer specifications
POLAR GRADES

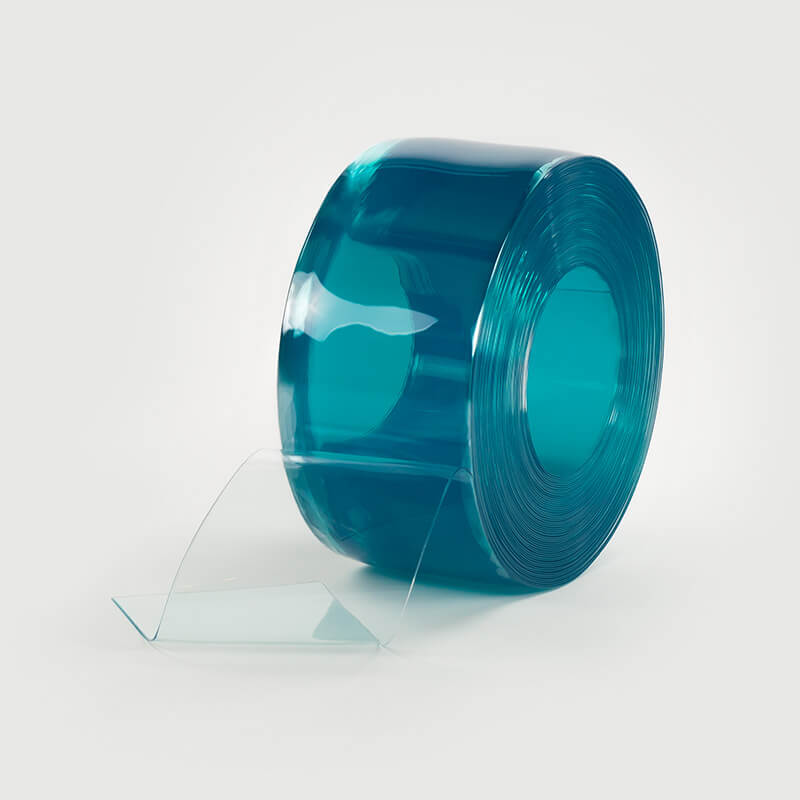

Polar PVC
Flexible access in the cold.
A softer cold-temperature grade for refrigerated doorways. Polar PVC remains flexible at lower temperatures than standard material, supporting regular access to chilled and frozen areas.
- Low-temperature flexibility
- Clear separation
- Smooth or ribbed options
OPERATING TEMPERATURE−25°C to 30°C
KEY CHARACTERISTICCold-room flexibility
TYPICAL APPLICATIONS
Cold roomsRefrigerated accessFood logistics
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−25°C to 30°C |
| Light transmission |
85% · ASTM D 1003 |
| Hardness |
65 Shore A · EN ISO 868 |
| Tensile strength at break |
12 N/mm² |
Select the grade against the actual operating temperature and traffic conditions.
View manufacturer specifications
POLAR GRADES
Super Polar PVC
For more demanding cold environments.
An extra-soft formulation for very low-temperature separation. Super Polar PVC extends the cold-use range while retaining transparency and flexibility.
- Very low-temperature material
- Softer than standard PVC
- For demanding cold applications
OPERATING TEMPERATURE−60°C to 15°C*
KEY CHARACTERISTICExtra-soft cold grade
TYPICAL APPLICATIONS
Deep-freeze areasCold-chain facilitiesLow-temperature partitions
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−60°C to 15°C* |
| Supplier usage range |
−60°C to 15°C · current Extruflex datasheet |
| Hardness |
62 Shore A · EN ISO 868 |
| Light transmission |
85% · ASTM D 1003 |
*Supplier reference range. Goldvest’s earlier listing specifies −50°C to 15°C. Confirm the supplied formulation and project rating before ordering.
View manufacturer specifications
TECHNICAL GRADES
Anti-UV PVC
Better resistance to sunlight.
UV-stabilised flexible PVC for applications exposed to sunlight. The formulation helps resist weathering, discolouration and loss of material properties over time.
- UV-stabilised formulation
- Clear, flexible separation
- For exposed applications
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICUV-weathering resistance
TYPICAL APPLICATIONS
Sun-exposed openingsFlexible windowsOutdoor partitions
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Light transmission |
85% · ASTM D 1003 |
| Hardness |
80 Shore A · EN ISO 868 |
| Primary function |
Resistance to UV-related material degradation |
Anti-UV PVC is a weathering-resistant grade. For arc-welding protection, select dedicated SCREENFLEX welding material.
View manufacturer specifications
TECHNICAL GRADES

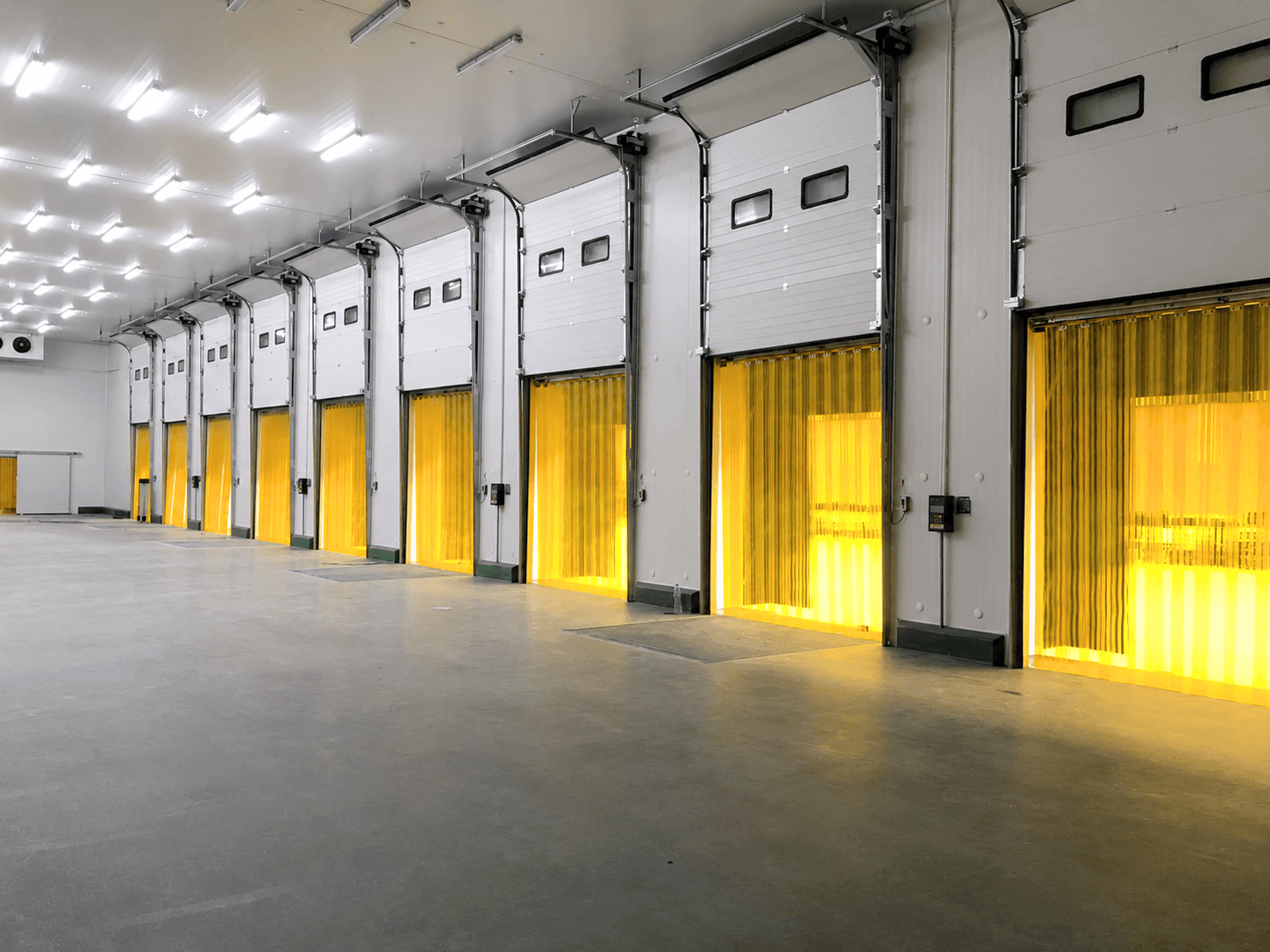

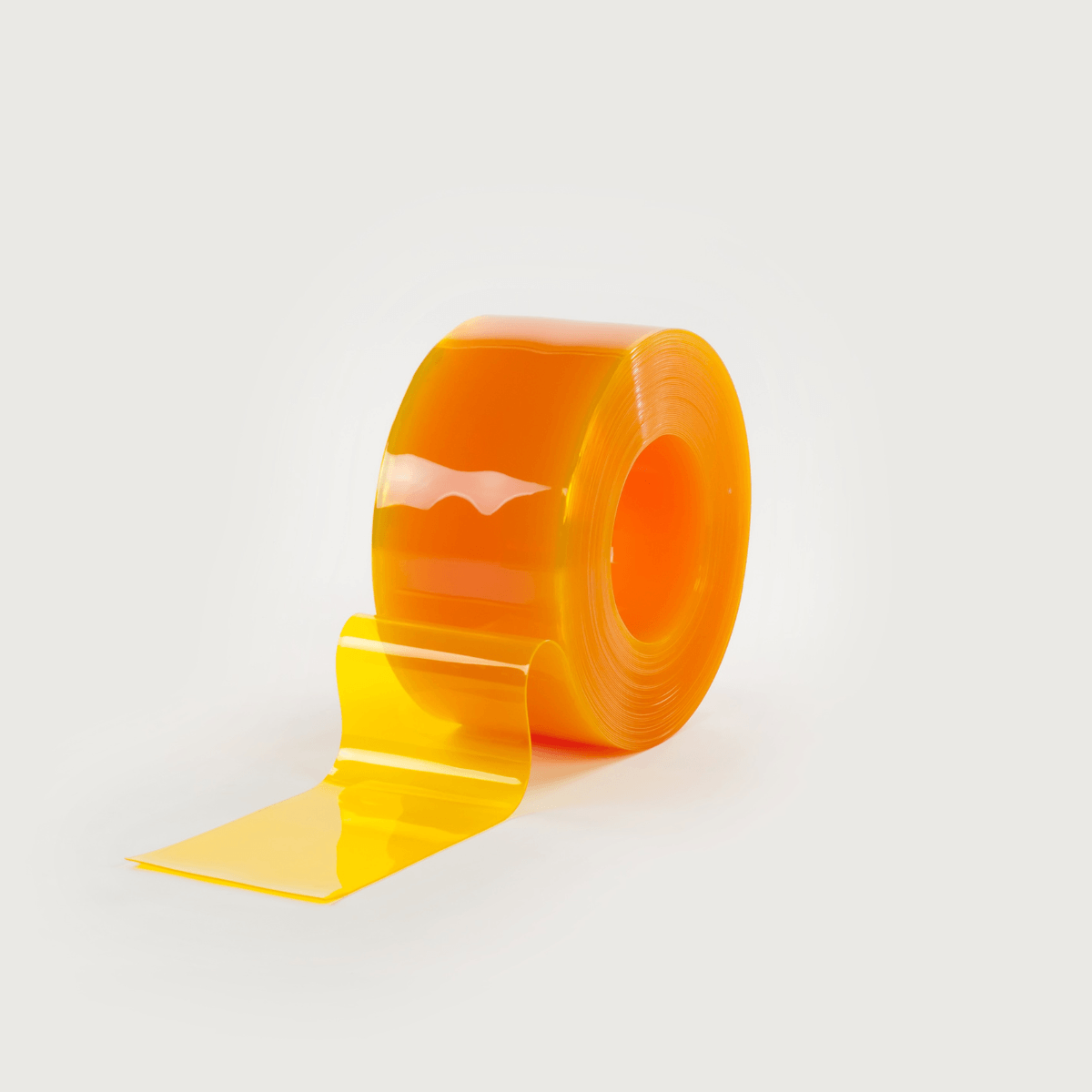

Anti-Insect Yellow PVC
Help keep flying insects outside.
Yellow-tinted strip curtains help make entrances less attractive to many flying insects, while maintaining easy access for people and handling equipment.
- Distinctive yellow tint
- Supports insect-entry reduction
- Helps limit dust and draughts
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICYellow insect barrier
TYPICAL APPLICATIONS
Food production entrancesCommercial kitchensWarehouse doorways
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Colour |
Transparent yellow |
| Hardness |
80 Shore A · EN ISO 868 |
| Role |
Insect-entry reduction at openings |
Use as part of a site’s pest-management measures. Yellow anti-insect PVC and active-agent STOP-INSECT are different formulations.
View manufacturer specifications
TECHNICAL GRADES

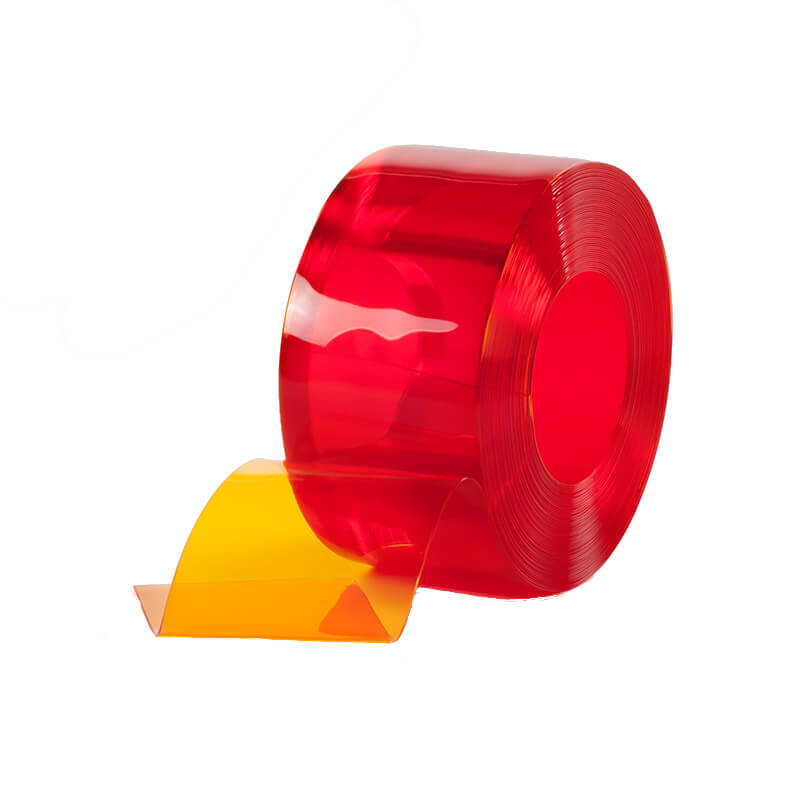

STOP-INSECT PVC
An active approach to insect control.
Flexible PVC incorporating an anti-insect agent. It combines physical separation with an active insect-control function for entrances and partitions exposed to pests.
- Integrated anti-insect agent
- Retains visibility
- Supports site pest management
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICActive-agent formulation
TYPICAL APPLICATIONS
Industrial entrancesAgricultural facilitiesPest-sensitive areas
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Material function |
Anti-insect agent incorporated in PVC |
| Hardness |
80 Shore A · EN ISO 868 |
| Maintenance |
Review material condition and active-effect requirements |
Confirm suitability, application instructions and replacement guidance for the supplied formulation.
View manufacturer specifications
TECHNICAL GRADES
Anti-Static PVC
For static-sensitive workspaces.
A static-dissipative formulation for areas where electrostatic charge needs to be managed. It provides flexible separation for sensitive equipment and production zones.
- Static-dissipative material
- Transparent separation
- Supports controlled-area layouts
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICStatic dissipation
TYPICAL APPLICATIONS
Electronics productionData centresCleanroom partitions
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Hardness |
80 Shore A · EN ISO 868 |
| Light transmission |
85% · ASTM D 1003 |
| Specification |
Confirm required electrical performance and test report |
Material selection should match the site’s ESD requirements and installation design.
View manufacturer specifications
TECHNICAL GRADES
Anti-Bacterial PVC
Extra support for hygiene-sensitive spaces.
Extruflex STOP-BAC incorporates an antibacterial treatment to inhibit bacterial growth on the material. Suitable for partitions where surface hygiene is a priority.
- Antibacterial treatment
- Transparent flexible material
- Complements routine cleaning
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICSTOP-BAC formulation
TYPICAL APPLICATIONS
Food preparationPharmaceutical areasHygiene-sensitive partitions
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Manufacturer test references |
ISO 22196 / JIS Z 2801 |
| Hardness |
80 Shore A · EN ISO 868 |
| Light transmission |
85% · ASTM D 1003 |
Antibacterial treatment does not replace cleaning and hygiene procedures. Request the applicable test documentation for the selected grade.
View manufacturer specifications
TECHNICAL GRADES
Fire-Retardant PVC
Specified reaction-to-fire performance.
A specialist formulation designed to limit flame propagation. It offers transparent separation where a defined material fire classification is part of the project specification.
- Fire-retardant formulation
- Transparent flexible barrier
- Grade-specific test documents
OPERATING TEMPERATURE0°C to 50°C
KEY CHARACTERISTICReaction-to-fire grade
TYPICAL APPLICATIONS
Technical partitionsData-centre layoutsSpecified industrial projects
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
0°C to 50°C |
| Supplier classifications |
EN 13501-1: B-s3,d0 / C-s3,d0, by product |
| Hardness |
80 Shore A · EN ISO 868 |
| Light transmission |
85% · ASTM D 1003 |
Confirm the exact classification for the supplied thickness and formulation. This material is not a fire-rated door or fire compartment barrier.
View manufacturer specifications
TECHNICAL GRADES
Food-Contact PVC
A dedicated grade for food contact.
Flexible PVC formulated for food-contact applications. Choose it when contact with food is part of the intended use, with the relevant declaration for your process.
- Food-contact formulation
- Clear visibility
- Dedicated compliance documentation
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICFood-contact grade
TYPICAL APPLICATIONS
Food handlingProcessing facilitiesFresh and frozen produce
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Supplier format range |
2–3 mm thickness |
| Supplier width range |
200–1,600 mm; format dependent |
| Compliance |
EU / FDA requirements as applicable to the supplied grade |
Confirm the declaration of compliance and intended contact conditions, including food type, time and temperature.
View manufacturer specifications
WELDING PROTECTION

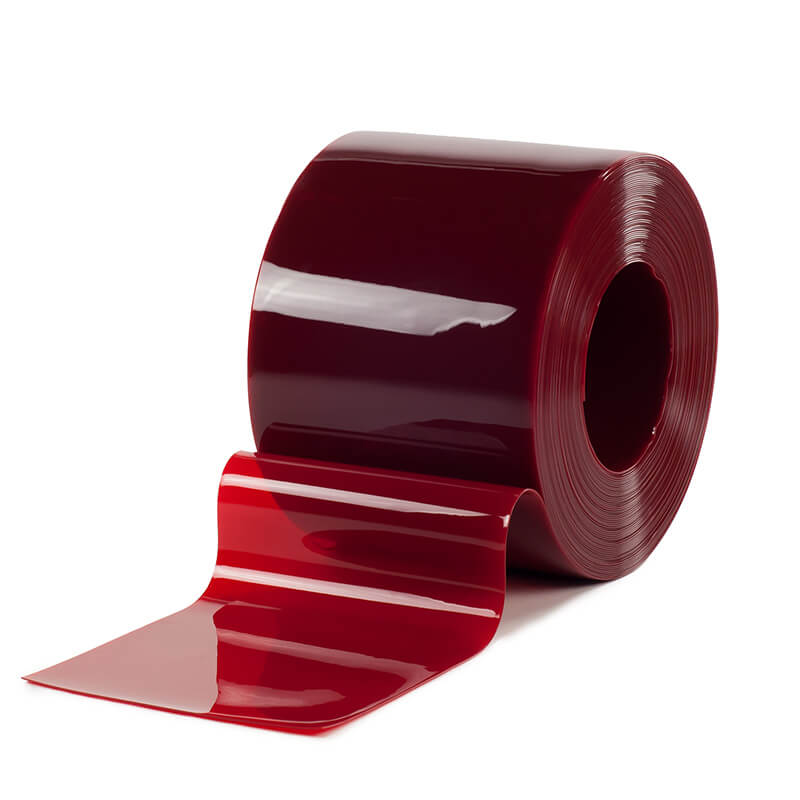

SCREENFLEX
Dedicated screening for welding areas.
Specialist welding PVC helps screen nearby personnel from harmful arc radiation. Available in different colours and transparencies for welding booths and partitions.
- Filters hazardous welding light
- Dedicated welding-screen material
- Colours and transparency options
OPERATING TEMPERATURE−15°C to 50°C
KEY CHARACTERISTICWelding protection
TYPICAL APPLICATIONS
Welding baysFabrication workshopsTraining facilities
Technical SpecificationsView material data and dimensionsExpandClose
| Usage temperature |
−15°C to 50°C |
| Manufacturer standard references |
ISO 25980:2023 / AWS F2.3M |
| Supplier thickness range |
0.4–3 mm; format dependent |
| Colour options |
Red, green, matt green and bronze |
Specify certified material for the intended welding application. Welding screens do not replace the welder’s eye and face protection.
View manufacturer specifications
SPECIALITY PRODUCTS

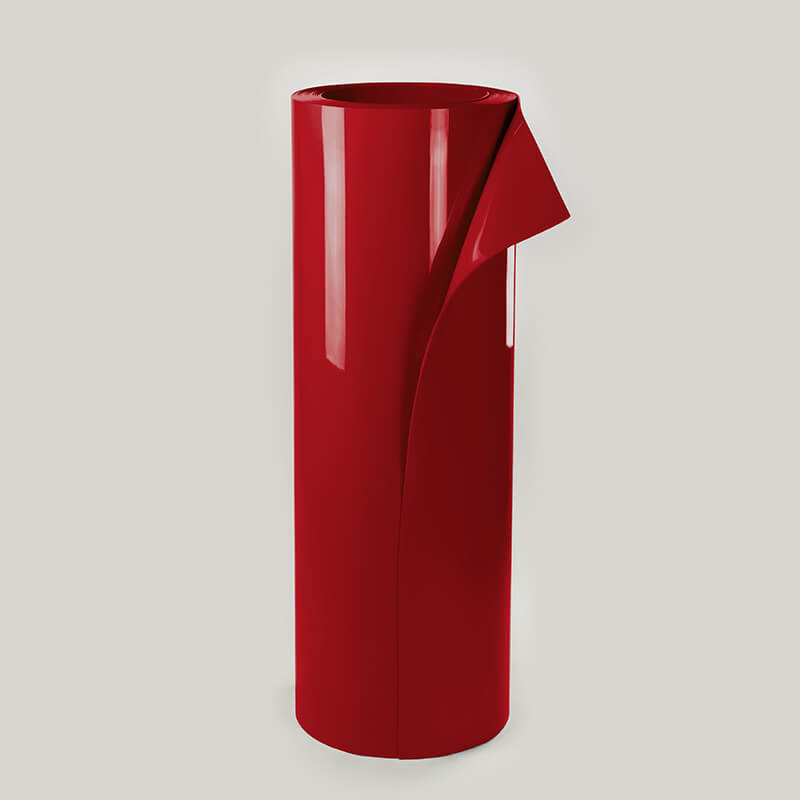

BALLISTIFLEX
Anti-return curtains for shooting ranges.
A specialist flexible PVC material used with shooting-range bullet traps. It helps limit returning fragments and contain lead dust around the trap, while contributing to impact-noise reduction.
- Elastic, impact-resistant material
- Supports lead-dust containment
- For specialist range applications
PANEL THICKNESS7–10 mm
KEY CHARACTERISTICAnti-return curtain material
TYPICAL APPLICATIONS
Indoor shooting rangesRange refurbishmentTraining facilities
Technical SpecificationsView material data and dimensionsExpandClose
| Panel thickness |
7–10 mm |
| Standard panel width |
700 mm |
| Published roll length |
20 m |
| Standard colours |
Red and black; others on request |
| Hardness |
76 Shore A · EN ISO 868 |
A component of a professionally specified bullet-trap system, not a standalone bullet-stopping barrier. Confirm suitability and installation requirements with the manufacturer.
View manufacturer specifications
